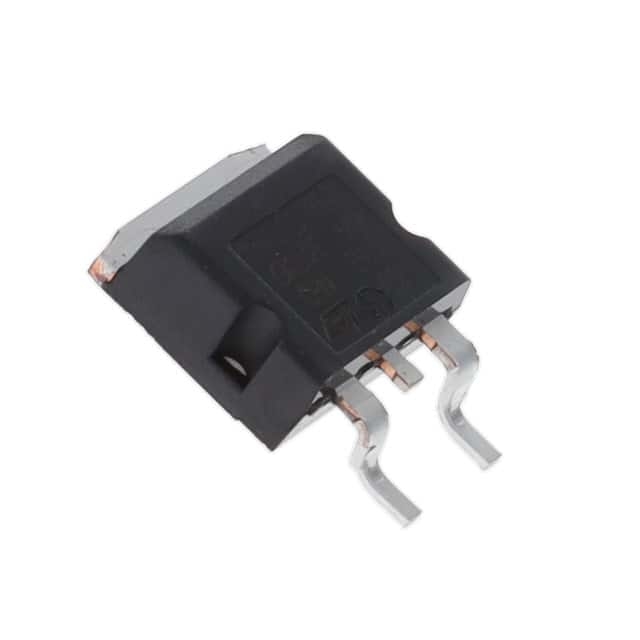

Description: DIODE SIL CARB 1.2KV 15A D2PAK
Category: |
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes |
Product Status: |
Active |
Current - Reverse Leakage @ Vr: |
90 µA @ 1200 V |
Mounting Type: |
Surface Mount |
Voltage - Forward (Vf) (Max) @ If: |
1.5 V @ 5 A |
Package: |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel® |
Series: |
ECOPACK®2 |
Capacitance @ Vr, F: |
1200pF @ 0V, 1MHz |
Supplier Device Package: |
D2PAK HV |
Reverse Recovery Time (trr): |
0 ns |
Mfr: |
STMicroelectronics |
Technology: |
SiC (Silicon Carbide) Schottky |
Operating Temperature - Junction: |
-40°C ~ 175°C |
Package / Case: |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Voltage - DC Reverse (Vr) (Max): |
1200 V |
Current - Average Rectified (Io): |
15A |
Speed: |
No Recovery Time > 500mA (Io) |
